Differential Pressure Transducer
TL1160Description

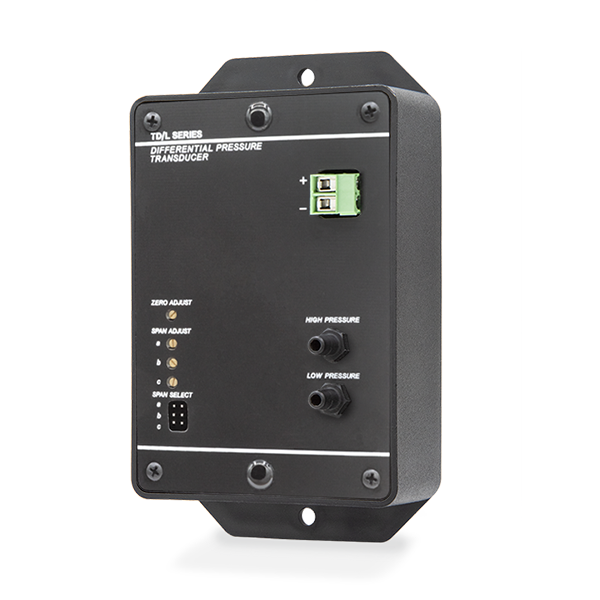

The TL1160 Pressure Transducer provides accurate pressure measurement for duct static pressure, building pressurization, and other differential air flow systems. Its differential pressure range is –0.25 to +0.25″, +0.75″ or +1.75″ WCD.
The TL1160 is functionally identical to the TD1190 Pressure Transducer, which has a differential pressure range of 0 – 1″, 2″ or 3″ WCD.
Accuracy:
+/– 1% of span @77°F (25°C)
Linearity:
+/– 0.2% FSO
Repeatability:
+/– 0.05% FSO
Hysteresis:
+/– 0.025% FSO
Thermal Effects:
+/– 0.06% FSO/°F (+/– 0.10% FSO/°C) relative to 69°F (20°C)
Media compatibility:
Non-ionic, non-corrosive gases
Supply Voltage:
12 – 35 VDC
Output:
4 – 20 mA DC, 2-wire
Polarity Protection:
Diode protected
Specs & Docs
Specifications:
General
Accuracy: +/-1% of span @ 77°F (25°C)
Linearity: +/-0.2% FSO
Repeatability: +/-0.05% FSO
Hysteresis: +/-0.025% FSO
Thermal Effects: +/- 0.06% FSO/°F (+/- 0.10% FSO/°C) relative to 69°F (20°C)
Media compatibility: Non-ionic, non-corrosive gases
Environmental
Operating temperature: 32 to 122°F (0 to 50°C)
Operating humidity: 0 to 100% RH, non-condensing
Storage temperature: 14 to 176°F (-10 to 80°C)
Electrical
Supply voltage: 12 to 35 VDC
Input voltage effect: +/-0.001% of span/volt
Output: 4 to 20 mA DC, 2-wire
Polarity protection: Diode protected
Specifications subject to change without notice.
