Temperature Sensor
PQ1029Description
For use with US5182, SZ2182, and SZ1025b (QE82 required for use with SZ2182).

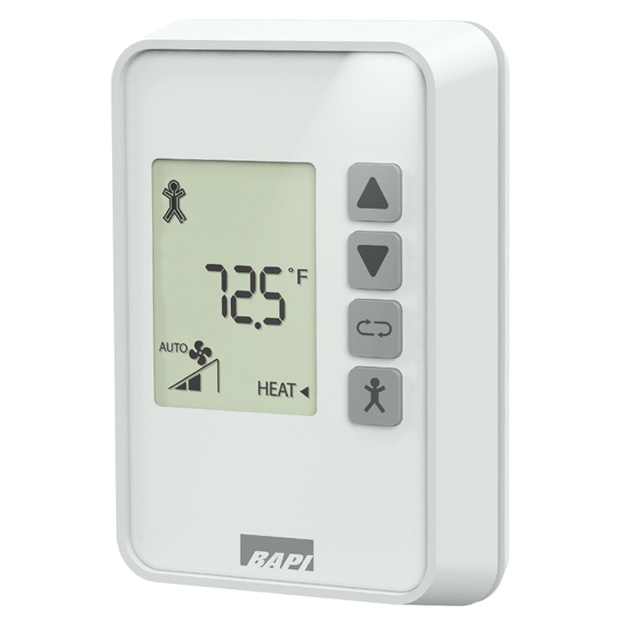

Decorative-style remote temperature sensor with a large LCD readout. Also features setpoint adjustment with lockout. Setpoint values are transmitted as resistive values for easy configuration and can be configured for “common ground” or “differential” controller inputs.
Specifications
Power:
5 VDC to 12 VDC ±5%
Power Consumption:
0.5mA
Sensing Element:
Thermistor or RTD
Wiring:
Two- or three-wire 16 to 22AWG
Environmental Operation Range:
- Temperature: 32 to 122° F (0 to 50°C)
- Humidity: 0 to 95%, non-condensing
Mounting:
Surface-Mount
Specs & Docs
Specifications:
See product data sheet…
