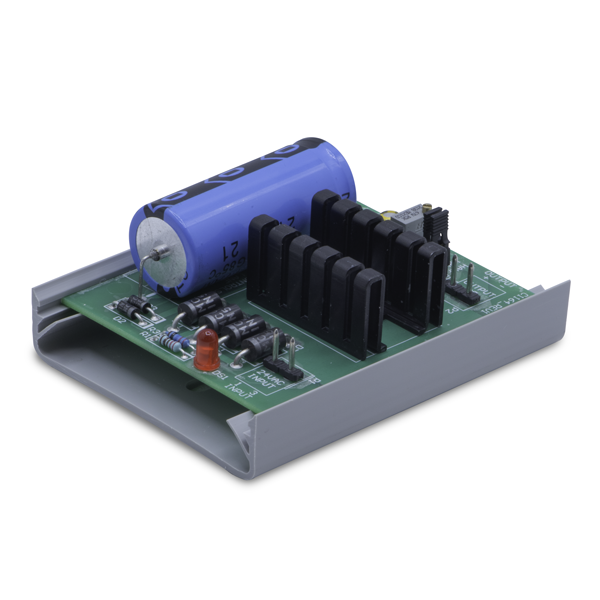

CP1030

Regulated DC Power Supply

Description

Power Supply – 24 VAC primary, regulated DC output, snap track mount

Features:

· Adjustable 1.2 to 27 VDC regulated output
· Half-wave or full-wave rectification (jumper selectable)
· Mounted on snap track for quick and easy installation

Call to order:

1-800-288-9383

Specs & Docs

Specifications:

General
Operating temperature:41 to 104∞F (5 to 40∞C)
Operating humidity:0 to 95% RH, non-condensing
Startup temperature:14 to 140∞F (-10 to 60∞C)
Electricalinput voltage:
CP1028: 115/230 VAC, 50/60 Hz
CP1030: 24 VAC, 50/60 Hz
Output voltage:
CP1028: 24 VDC unregulated @ 1000 mA
CP1030: 1.2 to 27 VDC regulated @ 1000 mA
Over current protection:
CP1028: 2 A fuse
