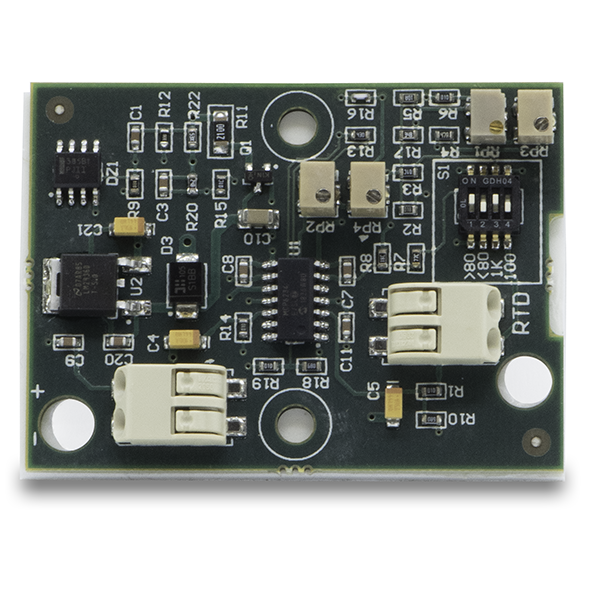

TX Series

Transmitters for TS Series Platinum Sensors

Description

The TX Series are temperature transmitters designed to provide a 4 to 20 mA signal proportional and linear to the sensed temperature.

Features:

• Temperature sensor input of either 100 or 1000 Ω platinum RTD • A variety of factory calibrated ranges • Able to be field calibrated with a minimum span of 25°F and a maximum span of 400°F – starting point no lower than -50°F and no higher than +375°F • Two or three-wire sensor inputs • Two-wire 4 to 20 mA linear output • Loop-powered • Superior level of radio frequency and electromagnetic interference rejection • Optimum flexibility and reliability

Call to order:

1-800-288-9383

Specs & Docs

Specifications:

General Accuracy: +/- 0.1% of span @ 32°F (0°C) transmitter only Input sensor: 100 or 1000 Ω platinum RTD with temperature coefficient of 0.00385 Ω/Ω/°C, jumper selectable Input: 2- or 3-wire Zero and span adjustment: Non-interacting Environmental Operating temperature: 32 to 158°F (0 to 70°C) Operating humidity: 0 to 100% RH, non-condensing Storage temperature: 14 to 176°F (-10 to 80°C) Electrical Supply voltage: 8 to 35 VDC Input voltage effect: +/- 0.001% of span/volt Output: 4 to 20 mA DC, 2-wire Maximum over-current: 25 mA Radio frequency interference effect: +/-0.5% FSO @ 27 MHz Electromagnetic interference effect: +/-0.1% FSO Polarity protection: Diode protected Specifications subject to change without notice.
