TX1130

Temperature Transmitter with Setpoint and Override

Description

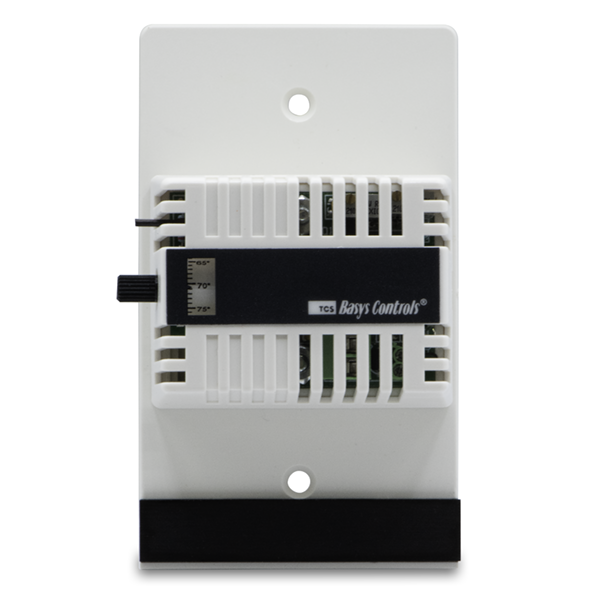

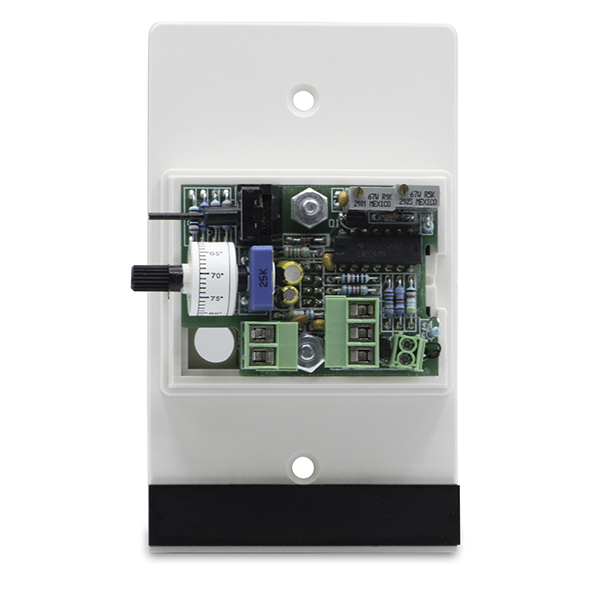

The TX1130 is a wall mount temperature transmitter complete with setpoint and override function. The TX1130 provides a Normally Open momentary pushbutton switch output. The TX1130 also provides two 4 to 20 mA outputs. The first output is the sensed temperature, scaled 4 to 20 mA from 50 to 85°F. The second is a 4 to 20 mA signal representing the position of the setpoint knob, scaled 50 to 85°F. Power may be provided from any DC supply from 8 to 35 VDC.

Features:

4-20mA temperature output (range 50 to 85ºF)
4-20mA setpoint adjustment (range 50 to 85ºF)
Momentary push button override
Mounts over standard handy box

Call to order:

1-800-288-9383

Specs & Docs

Specifications:

General

Accuracy: +/- 0.35°F
Built-in sensor: 100 W platinum RTD
Zero and span adjustment: Non-interacting

Environmental

Operating temperature: 32 to 158°F (0 to 70°C)
Operating humidity: 0 to 100% RH, non-condensing
Storage temperature: 14 to 176°F (-10 to 80°C)

Electrical

Supply voltage: 8 to 35 VDC
Input voltage effect: +/- 0.001 % of span/volt
Output: Two 2-wire 4 to 20 mA DC, momentary normally open push-button switch rated 10 mA @ 35 VDC or 24 VAC
Maximum over current: 25 mA
Polarity protection: Diode protected

Specifications subject to change without notice.
