Temperature Sensor Averaging Kit

TS3030

Description

The sensors in the TS3030 kit are averaging sensors for use in multiple zones. They are NOT interchangeable with the TS3000 sensor, which is for use in a single zone.

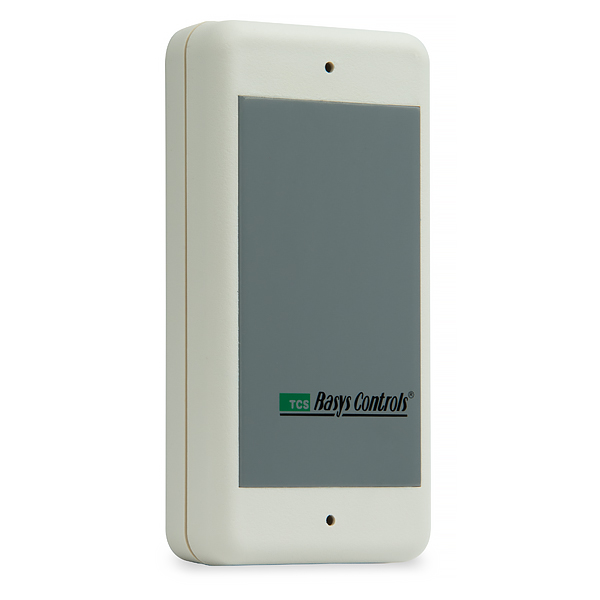

Room-mount sensors are used in standard spaces. Each sensor is enclosed in a ventilated ASB plastic housing with a plastic base. Units are suitable for mounting to drywall or block, or to a standard 2″ X 4″ handy box using a TQ Series plate adapter.

Where to Buy

Averaging sensor accuracy:

+/–1°F @ 70°F (21.11°C)

Temperature coefficient:

0.00385 Ω/Ω/°C

Reference resistance:

1000Ω @ 32°F (0°C)

Compliance:

DIN IEC 751

Response time (90%):

  • Air @1m/s: 25 seconds
  • Air @3m/s: 17 seconds

Operating temperature:

–50 to 375°F (–45.6 to 190.6°C)

Maximum current:

5 mA; recommended: 1 mA
