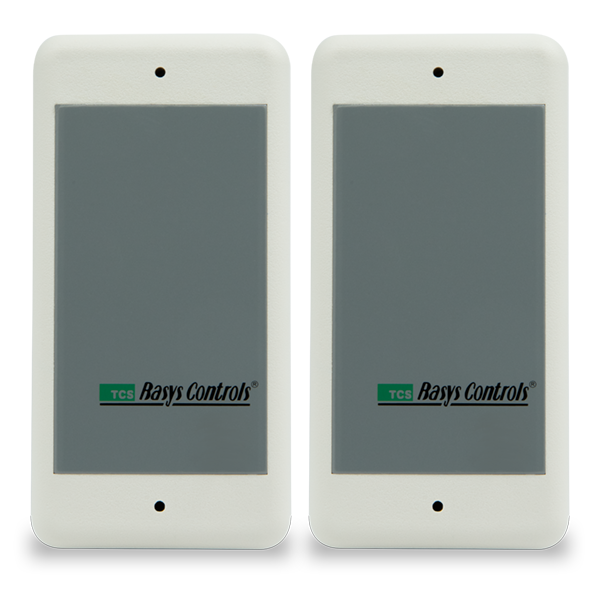

Temperature Sensor Averaging Kit: Two-Zone
TS3020Description
The sensors in the TS3020 kit are averaging sensors for use in multiple zones. They are NOT interchangeable with the TS3000 sensor, which is for use in a single space.
Room-mount sensors are used in standard spaces. Each sensor is enclosed in a ventilated ASB plastic housing with a plastic base. Units are suitable for mounting to drywall or block, or to a standard 2″ X 4″ handy box using a TQ Series plate adapter.
Averaging sensor accuracy:
+/–1°F @ 70°F (21.11°C)
Temperature coefficient:
0.00385 Ω/Ω/°C
Reference resistance:
1000Ω @ 32°F (0°C)
Compliance:
DIN IEC 751
Response Time:
90%
Air @1m/s:
25 seconds
Air @3m/s:
17 seconds
Operating Temperature:
–50 to 375°F (–45.6 to 190.6°C)
Maximum Current:
5 mA; recommended: 1 mA
