Temperature Sensor – Secure

TS3001

Description

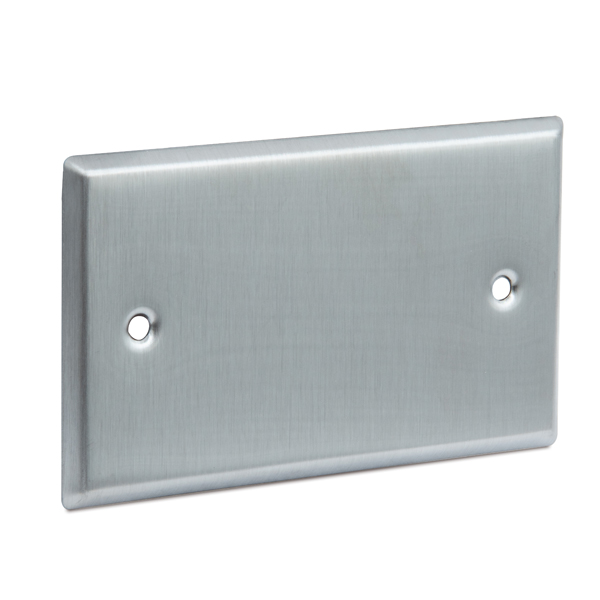

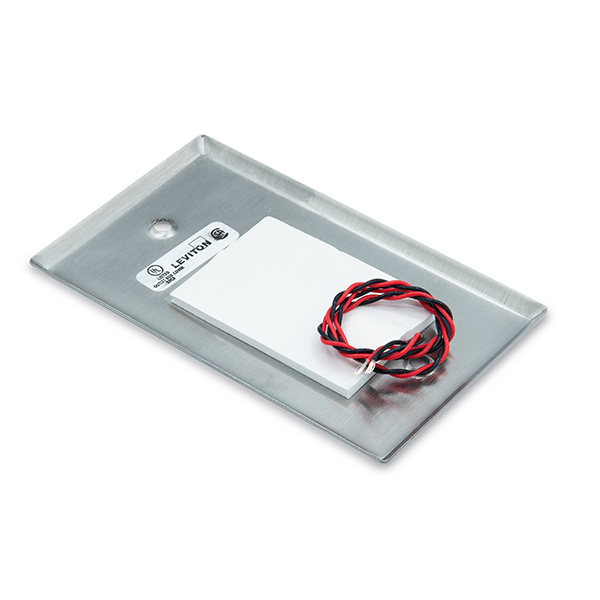

Space Temperature Sensor – same specifications as TS1007, but protected by exterior cover plate. Ideal for use in standard spaces where security is a consideration.

Where to Buy

Single-point sensor accuracy:

+/–0.1% @ 32°F (0°C)

Temperature coefficient:

0.00385 Ω/Ω/°C

Reference resistance:

1000Ω @ 32°F (0°C)

Compliance:

DIN IEC 751

Response time (90%):

  • Air @1m/s: 25 seconds
  • Air @3m/s: 17 seconds

Operating temperature:

–50 to 375°F (–45.6 to 190.6°C)

Maximum current:

5 mA; recommended: 1 mA
