TS2023a

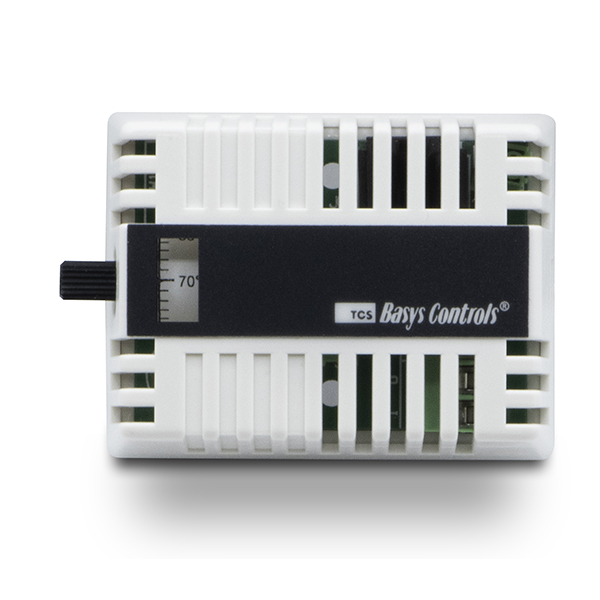

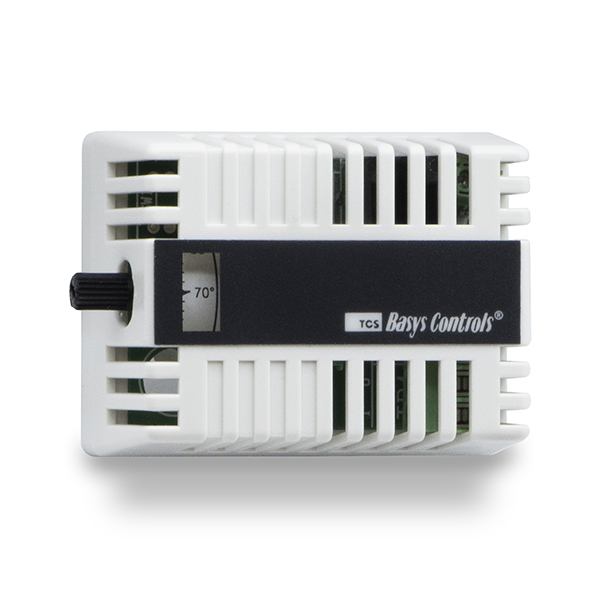

Remote Zone Sensor with Setpoint Adjustment
Description

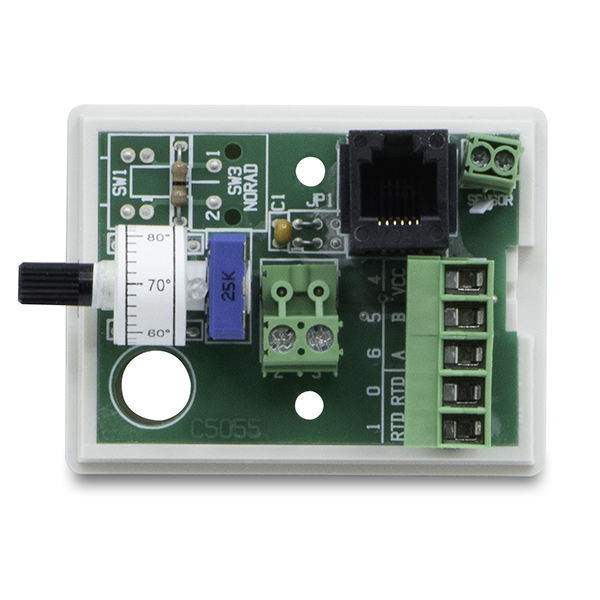

1000 ohm Platinum RTD Zone Temperature Sensor w/ override and setpoint for SZ1025b.
Room-mount sensors are used in standard spaces. The sensor is enclosed in a ventilated ASB plastic housing with a plastic base. Units are suitable for mounting to dry wall or block, or to a standard 2″ X 4″ handy box using a TQ Series plate adapter.
Features:
- Used with SZ1025b
- Long-term stability
- Linear, drift-free operation
- Compliant with DIN IEC 751 standards
- Industry standard temperature coefficient of .00385 Ω/Ω/°C
Call to order:
1-800-288-9383
Specs & Docs
Specifications:
General
Single-point sensor accuracy: +/–0.1% @ 32°F (0°C), +/–(0.3 + .005t) °C
Temperature coefficient: 0.00385 Ω/Ω/°C
Reference resistance: 1000Ω @ 32°F (0°C)
Compliance: DIN IEC 751
Response time (90%)Air @ 1m/s: 25 seconds
Air @ 3m/s: 17 seconds
EnvironmentalOperating temperature: –50 to 375°F (–45.6 to 190.6°C)
ElectricalMaximun current: 5 mA; recommended: 1 mA
Specifications subject to change without notice
