Duct-Mount Sensor: 1000 Ohm RTD
TS1009Description

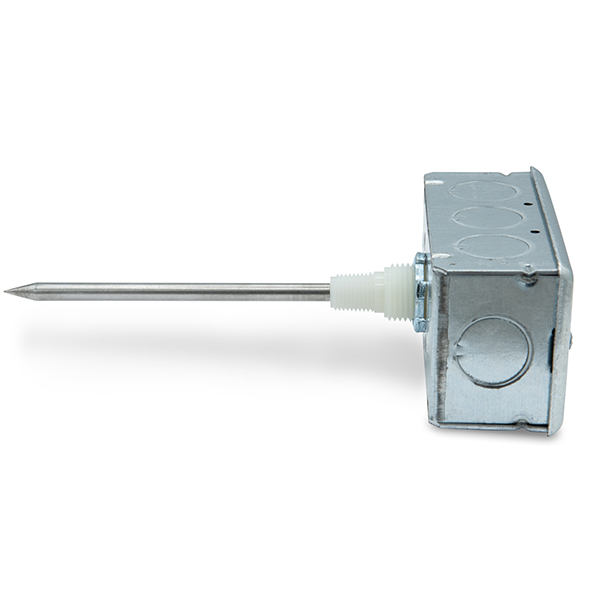

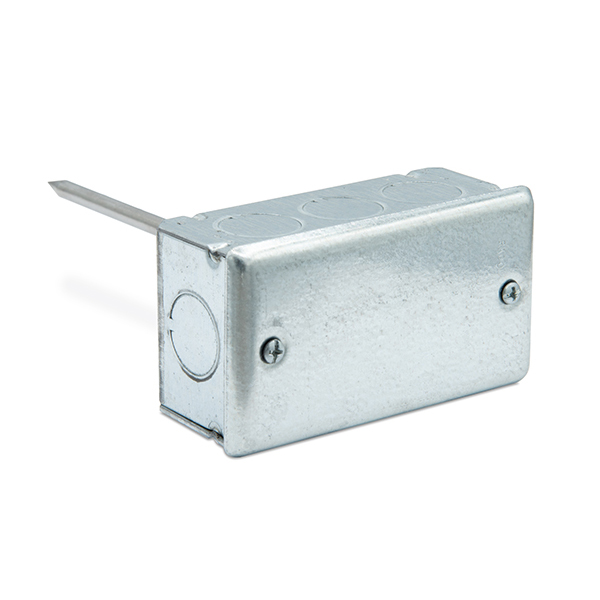

Duct-mount sensor with four-inch probe. Sensor comes in a standard 2″ x 4″ handy box enclosure with 1/2″ knockouts for use with conduit. Can be used in conjunction with 4″ or 8″ thermowell for liquid applications.
Single-point sensor accuracy:
+/–0.1% @ 32°F (0°C)
Temperature coefficient:
0.00385 Ω/Ω/°C
Reference resistance:
1000Ω @ 32°F (0°C)
Compliance:
DIN IEC 751
Response time (90%):
- Air @1m/s: 25 seconds
- Air @3m/s: 17 seconds
Operating temperature:
–50 to 375°F (–45.6 to 190.6°C)
Maximum current:
5 mA; recommended: 1 mA
Specs & Docs
Specifications:
General
Tolerance: +/-(0.3 + .005t) °C, +/-0.1% @ 32°F (0°C)
Stability: < 0.05% drift per year
Repeatability: +/- 0.1°C
Temperature coefficient: 0.00385 Ω/Ω/°C
Self-heating coefficient: < 5 mΩ/°C
Reference resistance: 1000 Ω @ 32°F (0°C)
Response time: (90% response) Air 1 m/s (25 sec.) Air 3 m/s (17 sec.) Water (0.3 sec.)
Interchangability: +/-0.3°C @ 32°F (0°C)
Conformance: IEC 751
Environmental
Operating temperature: -50 to 375°F (-45.6 to 190.6°C)
Electrical
Max. current: 5 mA; recommended: 1 mA.
Specifications subject to change without notice
