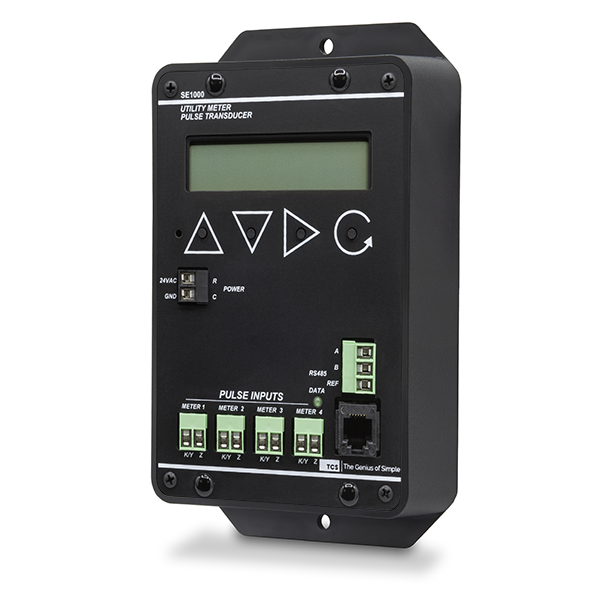

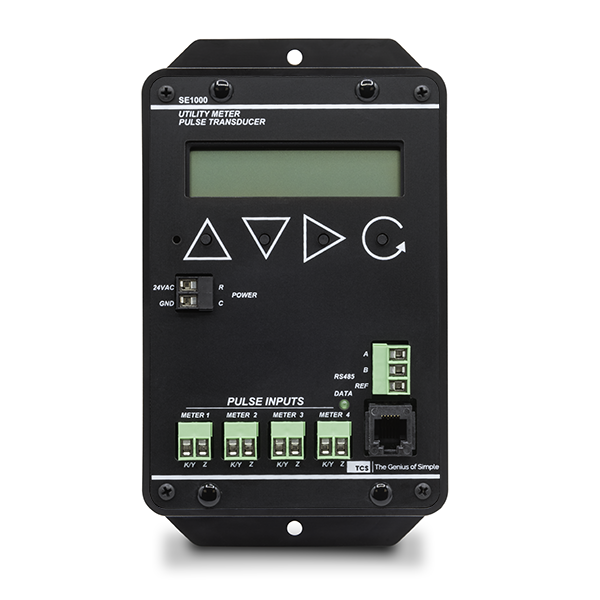

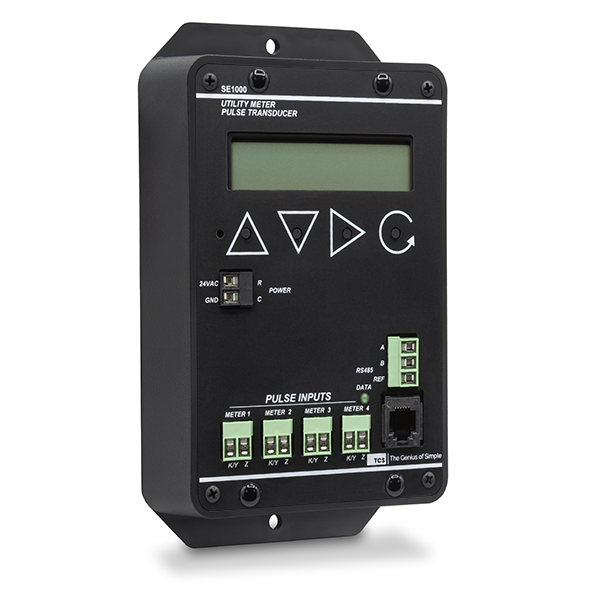

SE1000
Utility Meter Pulse Transducer
Description
The SE1000 is a microprocessor-based pulse monitoring interface designed to monitor up to four pulse inputs.
Features:
- Stand-alone or network operation
- Independently programmable inputs
- 32 character LCD display
- Four pulse inputs
Call to order:
1-800-288-9383
Specs & Docs
Specifications:
General
Accuracy: +/- 0.5%
Programming: EIA RS485 interface
Display: 32 character LCD
Communications:
RS485, half duplex
Memory backup: Non-volatile EEPROM, no battery required
Environmental
Operating temperature: 32 to 131°F (0 to 55°C)
Operating humidity: 0 to 100% RH, non-condensing
Storage temperature: 14 to 140°F (-10 to 60°C)
Electrical
Supply voltage: 24 VAC +/- 20%
Inputs: Four Pulse (dry contact)
Common mode rejection: 100 db @ 60 Hz
Power Consumption: 5 VA max.
Specifications subject to change without notice
