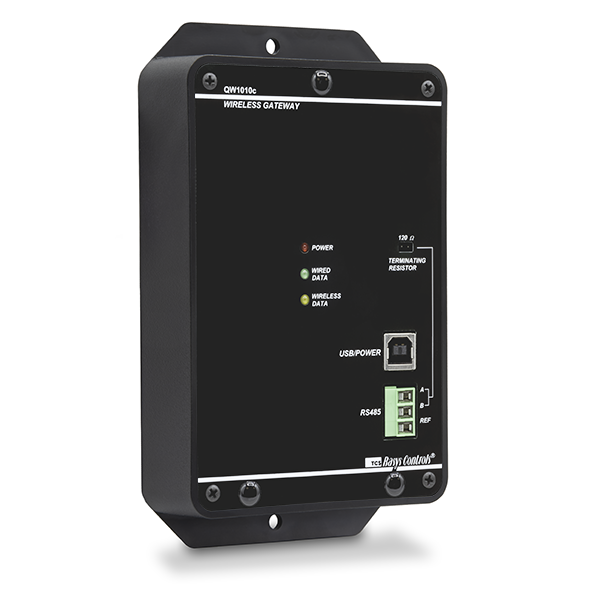

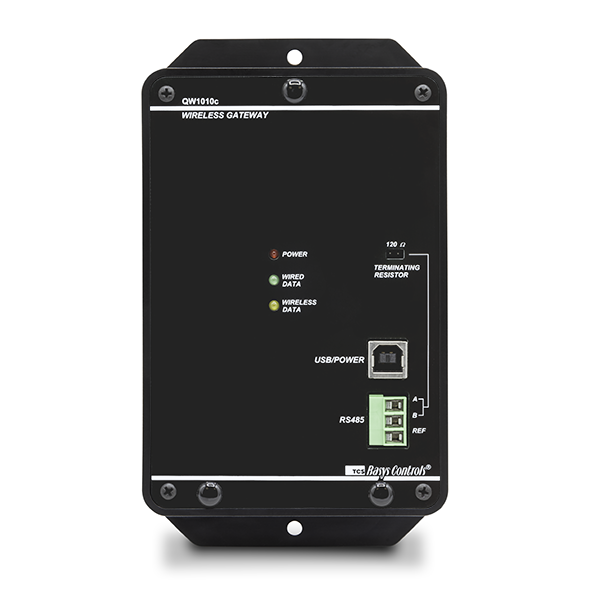

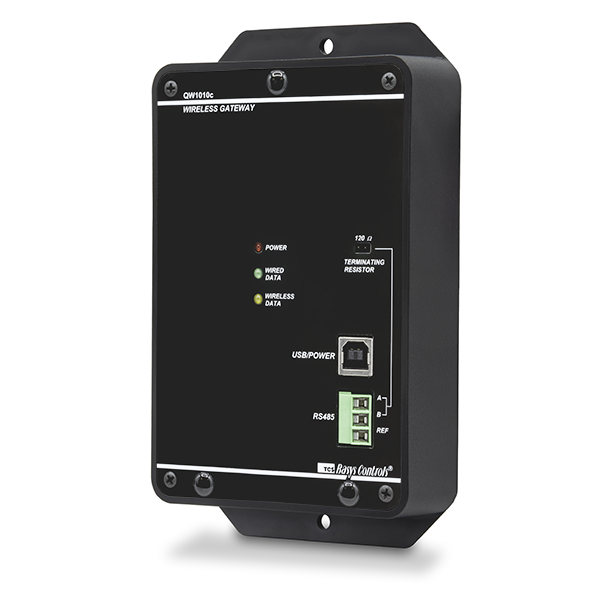

Wireless Gateway (Zigbee USB Indoor)
QW1010cDescription
The QW1010c allows monitoring and programming of building controls over a TCS ZigBee wireless network. This wireless network replaces the hardwired RS485 bus.
Communication baud rate:
9.6 kbps
Radio Output:
100 mW at 2.4 GHz
Antenna:
Internal to Unit
Power:
Via USB cable or power supply (both included)
Open field range:
- Gateway = 1000 ft
- Router/Repeater = 1000 ft.
Range:
150 to 500 ft (typical range, actual range depends heavily on building structure, makeup, and layout)
Supply voltage:
120 VAC @ 60 Hz to 5 VDC power supply
Wireless, Gateway, Zigbee, RS485
Specs & Docs
Specifications:
General:
Communication baud rate: 9.6 kbps
Radio
Output: 100 mW at 2.4 GHz
Protocol: TCS ZigBee, IEEE 802.15.4 compliant
Antenna: Internal to Unit
Power: Via USB cable or power supply (both included)
Open field range: Gateway = 1000 ft Router / Repeater = 1000 ft.
In building range: 150 to 500 ft (typical range, actual range depends heavily on building structure, makeup, and layout)
Max devices: 15 wireless devices per gateway (QW1010c)
Environmental
Operating temperature: 32 to 130°F (0 to 55°C)
Operating humidity: 0 to 100% RH, non-condensing
Storage temperature: 14 to 140°F (-10 to 60°C)
Electrical
Supply voltage: 120 VAC @ 60 Hz to 5 VDC power supply
Power consumption: 1 VA Max
Specifications subject to change without notice
